Chain conveyor scraper belt Bühler type manufacturer

Product DescriptionTGSS Series Chain Conveyor is suitable for conveying granular material and material in small particle size. It can be used for conveying finished and half-finished products from raw cereals in processing factories, especially suitable for conveying oil material in oil processing plants, as well as conveying of

Featured Products

Product Description

TGSS Series Chain Conveyor is suitable for conveying granular material and material in small particle size. It can be used for conveying finished and half-finished products from raw cereals in processing factories, especially suitable for conveying oil material in oil processing plants, as well as conveying of raw cereals in cereal depots., There are three type Chains for Chain conveyor to use at different applications, Sleeve Roller Chain, Forged type Chain, and round linking chain.



Feature

Full capacity scale, can provide users with 3-1000t / h production.

High output, low energy consumption, less material return, easy maintenance.

Compact design, saving floor space.

Drive unit with hollow shaft mounted geared motor.

Good sealing, low noise, low residue.

The working parts are laser-cut, mechanically bent and welded.

There are three type chains: Forged type Chain, Ring linking chain and Sleeve Roller Chain, for different applications.

The unloading port can be equipped with a self-clear gate.

Variety of real-time security protection, can be equipped (optional) with speed measurement, anti blocking and other safety devices.

Suitable for continuous horizontal conveying of materials which is used at ports, docks, grain depots, rice mills, flour mills, grain oil factories and food factories.





Technical Parameter

Model

Speed (m/s)

Capacity (t/h)

TGSS20

0.2~0.5

15~30

TGSS25

0.2~0.5

30~60

TGSS32

0.2~0.5

50~100

TGSS40

0.2~0.5

80~160

TGSS42

0.5~0.8

150~200

TGSS50

0.5~0.8

200~250

TGSS63

0.8~1.2

250~350

Product Picture

Chain Conveyor Scraper Plate Belt Buhler Type ManufacturersChain conveyor head
Chain Conveyor Scraper Plate Belt Buhler Type Manufacturers

Chain conveyor tail Tensioning mechanism
Chain Conveyor Scraper Plate Belt Buhler Type Manufacturers

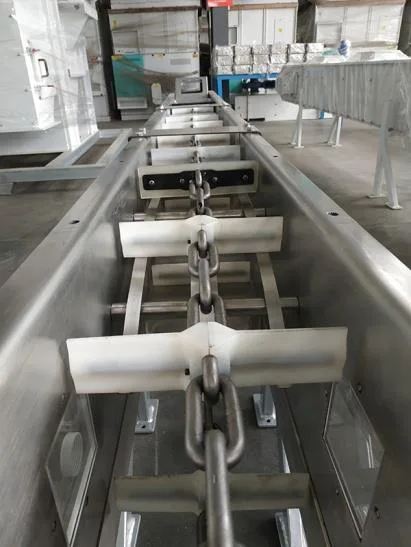

Round linking Chain, high strength specially design for rice, the most less broken generation.
Chain Conveyor Scraper Plate Belt Buhler Type Manufacturers



Packing Delivery

First, the brown rice is fed to rice polisher through screw head. the surface of the rice grain is polished by friction under a certain pressure and temperature. Through the polishing treatment, not only the floating surface of the rice grain can be cleared, but also the starch is pregelatinized and gelatinized on the surface of the rice starch, and the starch gelatinization makes up for cracks, thereby obtaining the smooth appearance, improving the storage life of the rice, therefore polished rice is very necessary.





Chain Conveyor Scraper Plate Belt Buhler Type Manufacturers


Chain Conveyor Scraper Plate Belt Buhler Type Manufacturers

Our Service

[Consulting Service] Our consultant provides you with pre-sales expertise consulting services, system evaluation, providing the best engineering solution

[Engineering Service] Set up special project team of technical, installation and sales for you. to design, install and commissioning a complete set of equipments, whole process tracking service.

[Training Service] Our experts in technology and management provide you long term production, operation, management, maintenance and other professional skills training, to help you train operation, technology, management personnel.

[Spare Part Service] We provides high-quality and reliable original accessories. And the service centers also keep store of a certain number of common accessories to meet the demand of rapid supply.

[Site service] Our service engineer goes deep into your site to solve practical problems. Conduct on-site training on the use of products and seek for improvement of a new way of thinking and method to reduce cost and increase efficiency.



FAQ

1. What is the delivery time of this machine if we book order right now?

We will deliver your order within 30-60days depend on different of machines.

2. How do you pack this machine for exporting?

We will provide packing which is suitable for the agreed means of transportation and for the foreseeable conditions of storage at the destination.

3. How can we make inspection before delivery?

We welcome you send your inspection manager come to our factory for inspection or you can nominate international the third part inspection company.

4. What is the warranty for your machine?

If any defect or non-conformity arising from faulty design, materials, we shall eliminate defects or replace machine.

5. What is the installation requirement of this machine?

The foundation of the machine should be with sufficient strength to support the weight of the machine.

There should be enough space around the machine for maintenance and inspection.
